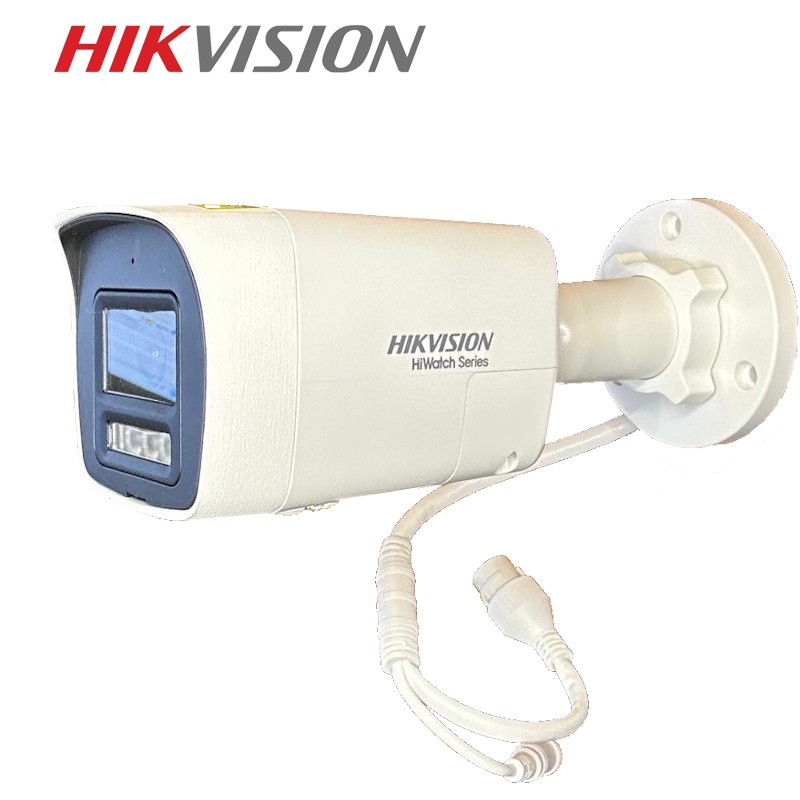

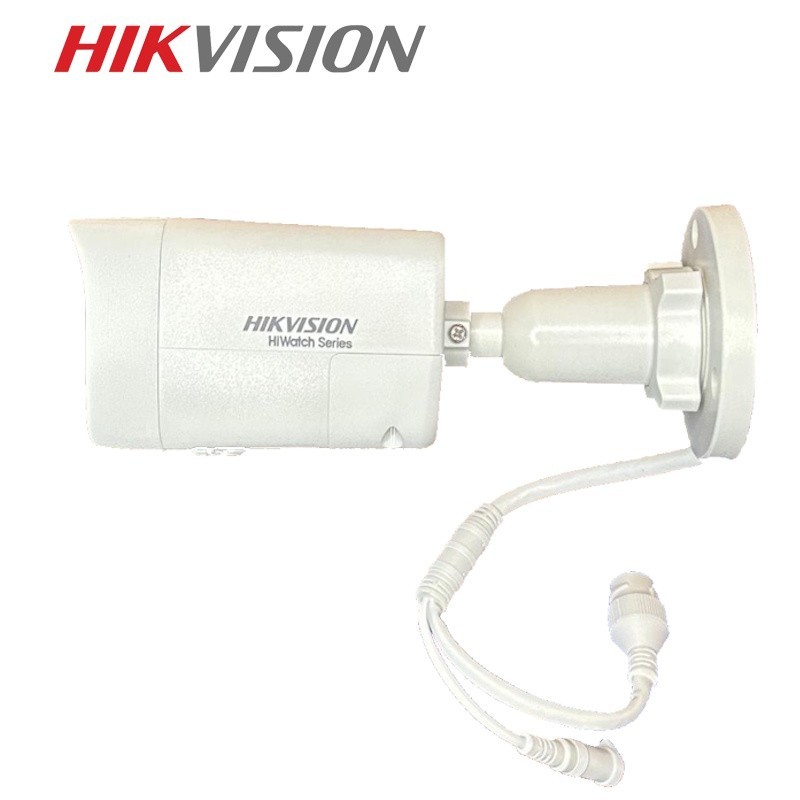

Telecamera Hikvision bullet IP Color Vu HD+ 4Mpx 2.8mm AI 2.0 h.265+ Poe IP67 HWI-B149HA-luf/srb 2.8mm
Principali Caratteristiche
Immagini di alta qualità con risoluzione 4 MP
Immagini a colori 24 ore su 24, 7 giorni su 7
Supporta il rilevamento di persone e veicoli
Smart Hybrid Light: tecnologia avanzata con copertura a lungo raggio
Fornisce sicurezza in tempo reale tramite audio bidirezionale integrato e allarme con luce stroboscopica
Tecnologia di compressione H.265+ efficiente
Supporta l'archiviazione integrata fino a 512 GB (slot per scheda SD)
Resistente all'acqua e alla polvere (IP67)
Model HWI-B149HA-LUF/SRB
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64
Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, watermark,
basic and digest authentication for HTTP,
WSSE and digest authentication for Open Network Video Interface,
security audit log, host authentication (MAC address)
Client iVMS-4200, HiLookVision
Web Browser Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain,
white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes, 1 built-in microphone
Built-in Speaker 1 built-in speaker,
Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB.
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (person and vehicle)),
video tampering alarm, exception
Linkage Upload to memory card, upload to FTP,
trigger recording, notify surveillance center, send email, trigger capture
General
Power 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.7 W
Material Front cover: metal, body: plastic, bracket: plastic
Dimension 179 mm × 69.1 mm × 67.4 mm
Weight Approx. 320 g
Storage Conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C. Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Flashing Light /SRB model: Red and Blue Light
/SL model: White Light
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
